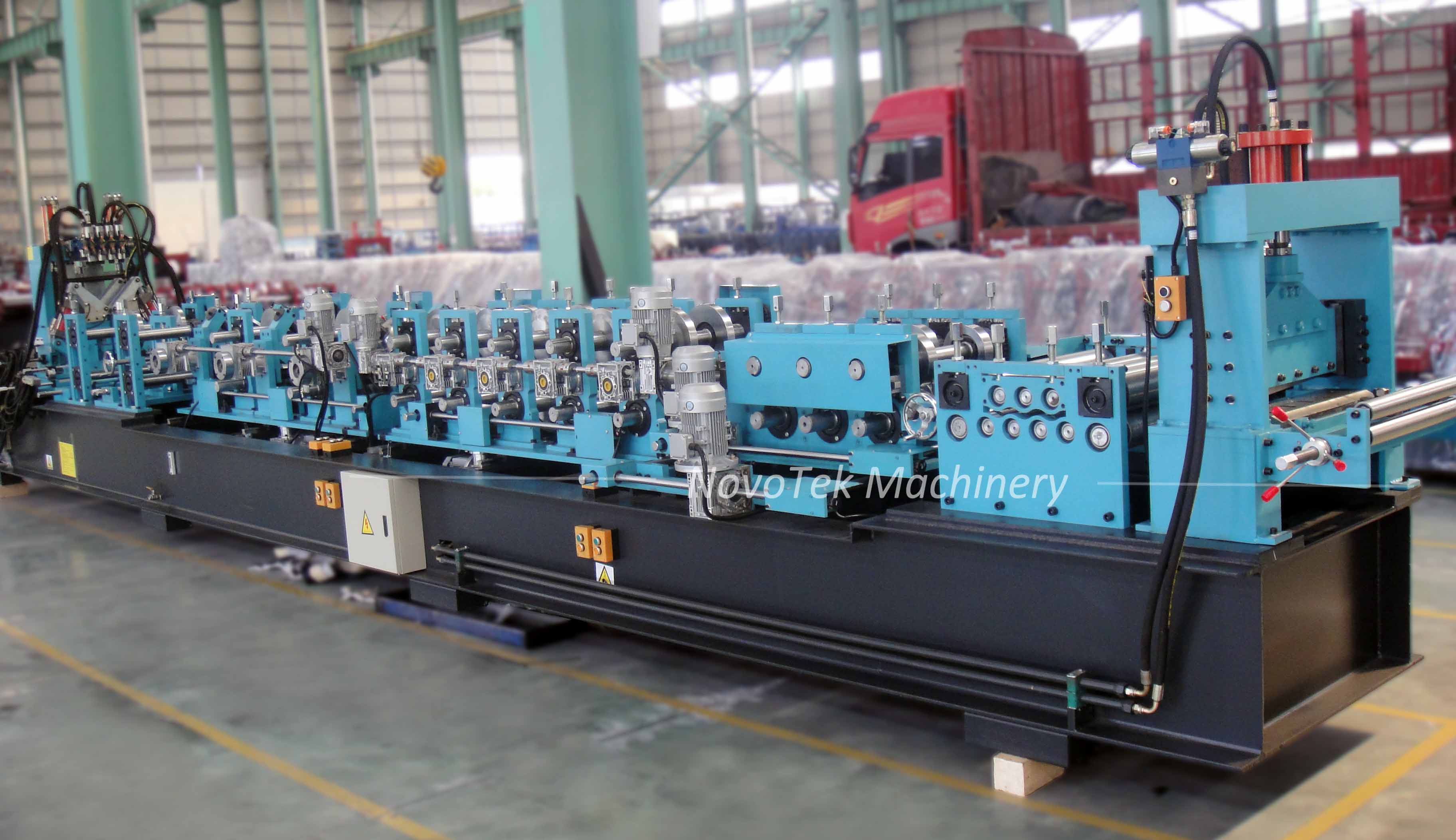

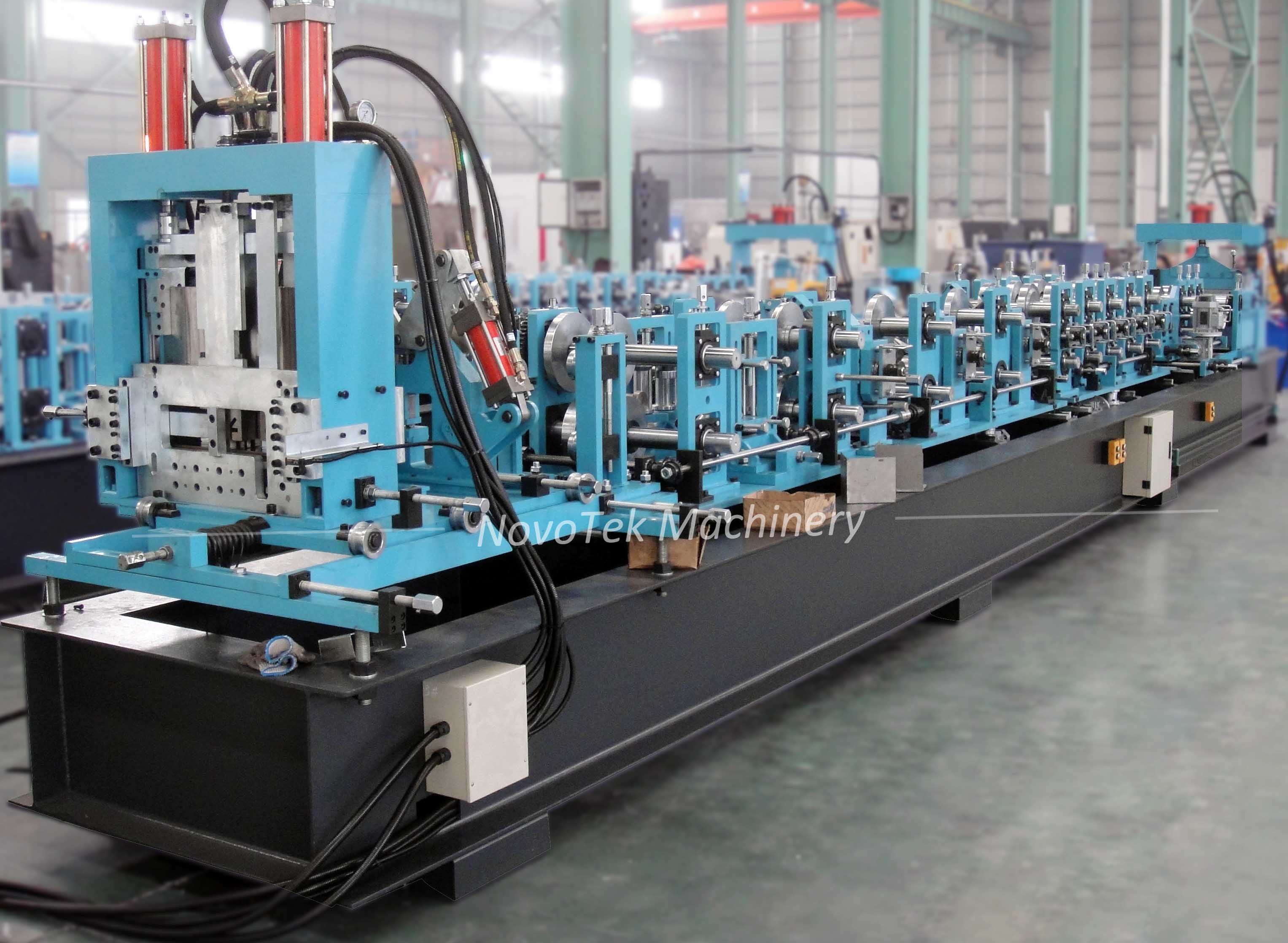

CZ Purlin Roll Forming Machine
Novotek is the biggest CZ purlin interchange machine manufacturer in China and is the only supplier that can produce fully automatic type.
a) Fully automatic type: purlin size change and CZ interchange both are controlled by PLC and operating on touch panel, within 1 minute.
b) Semi-automatic type: purlin size change by press button, CZ interchange change manully (within 10 minutes)
As the leading and biggest C&Z Purlin Machine manufacturer in China, on average we have delivered 180-200 sets Purlin Machines each year in the past 5 years, also we are the only factory to supply fully automatic type in China.
Technical Parameters
a) Fully automatic type: purlin size change and CZ interchange both are controlled by PLC and operating on touch panel, within 1 minute.
b) Semi-automatic type: purlin size change by press button, CZ interchange change manully (within 10 minutes)
As the leading and biggest C&Z Purlin Machine manufacturer in China, on average we have delivered 180-200 sets Purlin Machines each year in the past 5 years, also we are the only factory to supply fully automatic type in China.
Technical Parameters
|
Item
|
Parameters
|
|
Coil thickness (mm)
|
1.5-3
|
|
Max speed (m/min)
|
30
|
|
Roll stand
|
18
|
|
Main motor (Kw)
|
Hydraulic motor, 22
|
|
Main shaft (mm)
|
Ø 100/ 75/ 60
|
|
Cutting way
|
Hydraulic cutting
|
|
Cutter material
|
Cr12Mov
|
|
Punching
|
3 sets
|
|
Control system
|
PLC
|
|
Size change
|
PLC control / Press button |
|
CZ interchange
|
PLC control/ Reverse roller
|
Standard Shape Profile (also can be customized)
C purlin: A=80-300mm; B=35-80mm; C=10-25mm; T=1.5-3mm
Z purlin: A=120-300mm; B=35-80mm; C=10-25mm; T=1.5-3mm
