Pre-cut CZ Purlin Roll Forming Machine


Pre-Cut & Pre-Punch C Z Purlin Roll Forming Machine (NTK-CZ-300AQ)

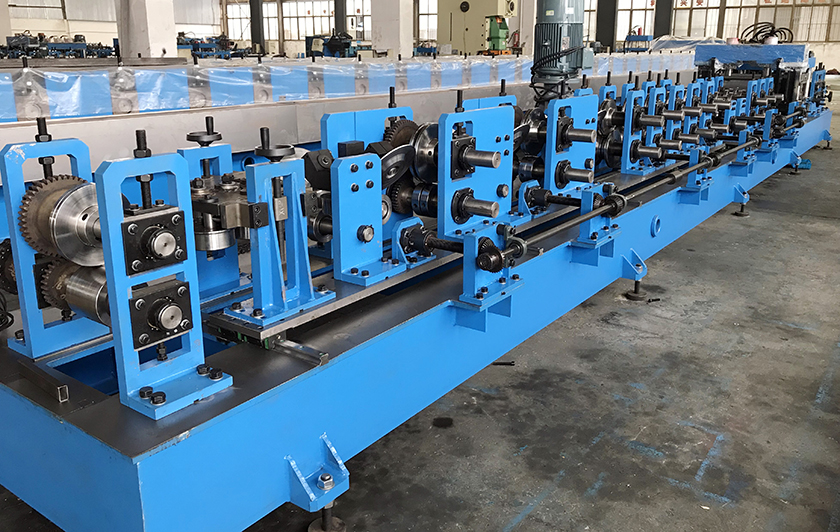

NOVOTEK manufactured C Z Purlin making machine, also called fast change C Purlin Roll Forming Machine or C & Z channel Interchangeable Rolling Machine, can be used to produce both C Purlin and Z Purlin with various sizes, in different thickness, and with punch on web and flange side.

Pre-Punch C Z Steel Profile Machine

Introduction:

Our standard fully automatic pre-punching and pre cutting C Z purlin machine, including 2 sets of PLC controlled lateral movement punching unit. By chain or gearbox drive, its speed can up to 35m/min.

  1. Raw material: GI or black sheets, 1.5-3.0mm

  2. Product size: C profile 80-300mm & Z Profile 120-300mm (also we have NTK-CZ-400 available)

  3. Machine speed: Max. 30 m/min (by servo motor driven)

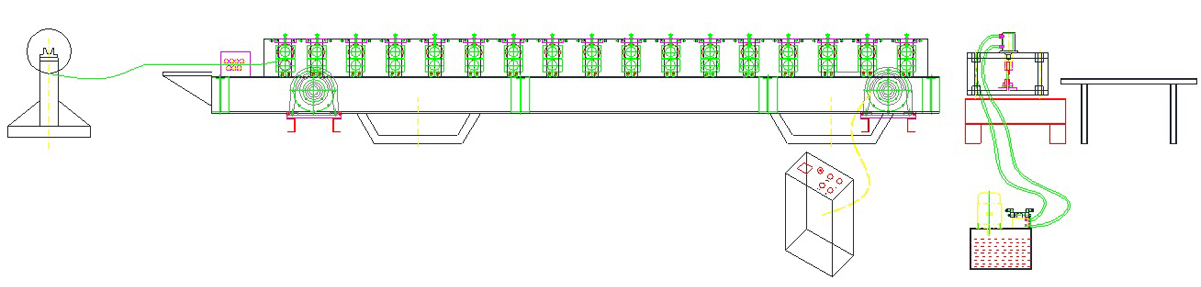

Steel Purlin Roll Forming Machine Main Components :

Uncoiler

  1. Type: Mechanical Uncoiler, Hydraulic Uncoiler (with or without coil car)

  2. Load capacity: 6T

Main Machine of Pre-cut Purlin Machine

  1. Roller material: GCr15 with heat treatment, polishing and galvanizing.

  2. Main motor: normal electrical motor or servo motor drive

  3. CZ Interchange: interchange between C and Z purlins controlled by PLC and set through touch panel.

  4. Size Change: size change also controlled by PLC and set through touch panel, continuously adjustable.

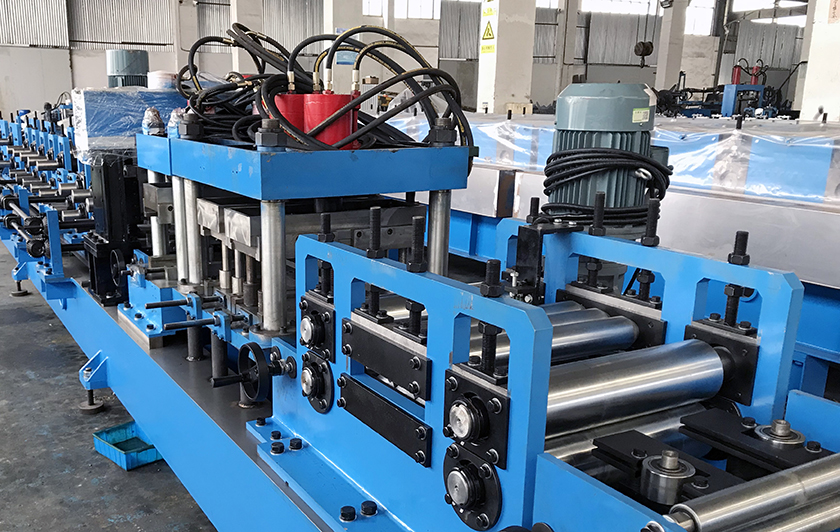

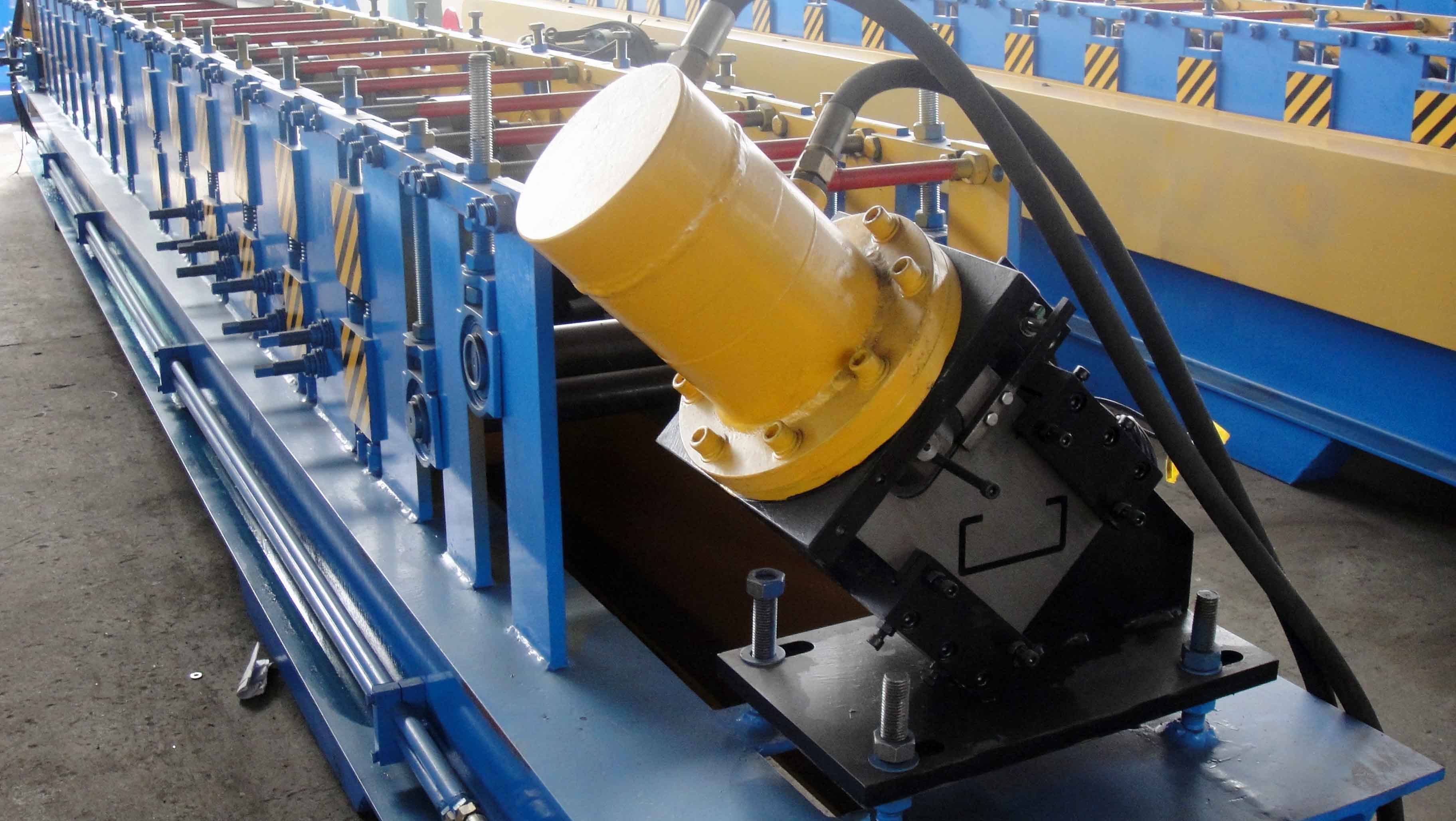

Pre- Punching & Pre- Cutting

  1. Punching unit: 2 sets (can be added)

  2. Pre-cut: 1 set

  3. Cutting length, cutting pieces, and punching are controlled by PLC.
